18 " inch - X(S)K 450 Rubber Two Roll Mixing Mill-Reyes Machinery Co.,Limited

Request a quote

Product Details

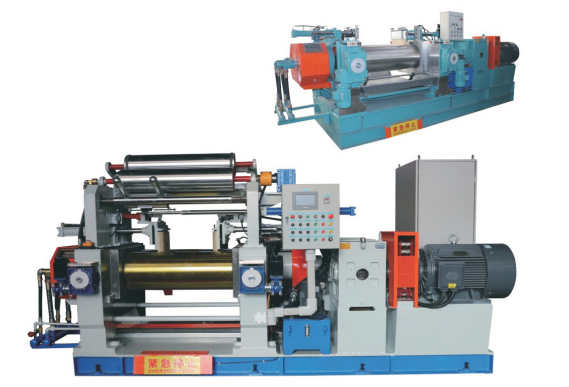

18 Inch X(S)K450

Rubber Two Roll Mixing Mill

Double Motors,

Double Output with Hydraulic Board ,

Automatic Gap Control and Stock Blender

Mixing mill -

What is a Rubber Mixing Mill?

A rubber mixing mill is an application for mixing rubber compounds. Generally, these are devices with two large heavy-rotating rollers. Kneading, stretching, and mixing rubber material forms a homogeneous rubber mix applied in the manufacture of countless products from tires to gaskets.

The size and capacity of the rubber mixing mills can vary, but the purpose is always the same: to produce a uniform rubber compound. The rollers are usually made of steel, and their working temperature is controlled with water to avoid overheating and ensure uniform mixing.

Application Fields

Applications of Rubber Mixing Mills –Rubber mixing mills are used in most industries requiring custom rubber compounds. Some of the major applications are as follows:

• Automotive: Tires, belts, hoses, and gaskets require special rubber mixes to resist wear and extreme conditions.

• Construction: Weather-resistant materials for windows, doors, and roofing products rely on rubber compounds.

• Footwear: The soles and heels of shoes use rubber compounds for durability and comfort.

• Industrial Products: In rubber manufacturing, seals, gaskets, and rollers require certain types of rubber for longevity and performance.

• Widely used in plastic processing and paint and pigment industrial production.

• Recycling and processing of waste rubber materials.

• Crushing, mixing and pressing of recycled rubber.

Technical Specifications of 18inch -X(S)K450 Rubber Two Roll Mixing Mill

Roller diameter	450 mm (18 inch)
Roller working length	1200 mm (48 inch)
Front roller speed	21.8 m/min
Rear roller speed	3.0-30m/min m/min
Speed ratio	1:1.27
Max.gap adjustment	12 mm
Once feeding capacity	≤50kgs
Main motor power	55 kw
Main motor speed	980 r/min
Power supply	380V-50Hz-3Phase
Pressure of cooling water	0.3 Mpa
Bush	Bearing type
Emergency Stop	Press Button Brake & Foot Brake
Distance adjustment method	Manual spacing adjustment
Dimension	5000X1900X21500 mm
Weight	12000 kgs

Features:

Roller made from chilled cast iron, divided into bored roller and drilled roller, roller has inner cavity machining. Both smooth surface roller and fluted roller can be processed.
Total 3 adjustable pitch ways for roller: Manual, Electric and Hydraulic.
Choose tilting case and different speed ratio according to user`s processing requirements.
The main motor can use DC and variable frequency conversion AC motor.
The whole machine modular design, compact structure.

Safety & Reliability

Rubber Mixing Mill operation process involves high temperature, high pressure, mechanical movement and other factors, so in order to ensure its safety and reliability, our equipment to do:

Equipped with safety guards: The Mixing Mill is equipped with safety guards, which can quickly cut off the power supply in case of emergency to avoid accidents.

Equipped with monitoring system: the equipment is equipped with monitoring system, which can monitor the temperature, pressure, current and other parameters in real time.

Conform to industry standards: our equipment conforms to national safety standards and regulations.

Factory Inspection: Our equipment has gone through strict pre-shipment inspection procedures to ensure that the quality is qualified, safe and reliable.
