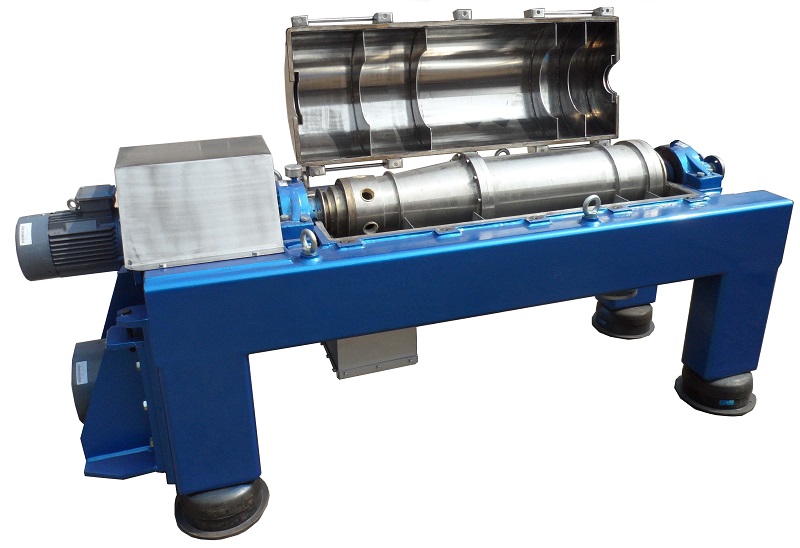

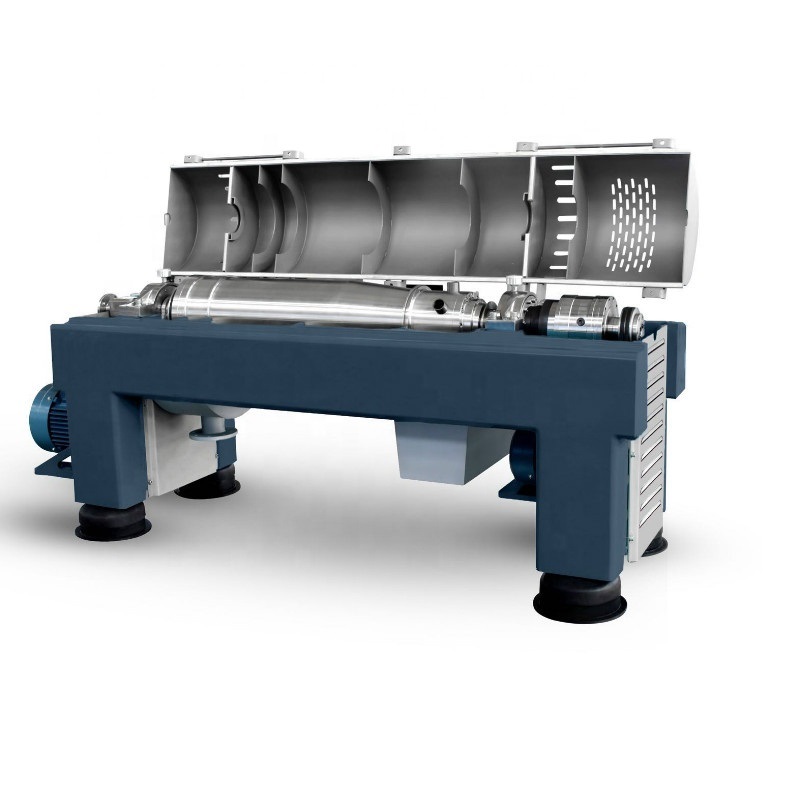

REYES 3 phase decanter centrifuge is mainly designed for Solid-liquid-liquid three-phase separation of materials.With our over 30 years of experience in the separation industry, it is the most advanced type machine for 3 phase separation. It is designed for 24 hours continuous and smooth operation throughout the day. It is mainly composed of driving system, decanter bowl, screw conveyor inside the bowl, cover box, skid and VFD control panel.
To ensure that the separation process can take place, the solid phase must be the specifically heaviest phase and the two liquid phases must have different densities.The main difference between the 2 phase decanter and 3 phase decanter is that the 3 phase decanter not only separate the solids but also separate two phase of the liquid.
REYES 3 phase decanter is widely used for oil , water, solids separation industry.

3 PHASE DECANTER WORKING PRINCIPLE
The three-phase decanter centrifuge operation is based on the principle of sedimentation, that is, solid particles with specific liquid weight precipitate in a predetermined time. This principle can also be applied to two immiscible liquids with different specific gravity. When the material enters the high-speed rotating drum, the material rotates synchronously with the drum. Because of the different specific gravity, the centrifugal force is different. The solid particles with the larger specific gravity are subjected to the greatest centrifugal force, followed by the heavy phase liquid (such as water) and the light phase liquid (such as oil). So the centrifugal force is becoming less from outside to inside according to the magnitude of centrifugal force. A concentric solid layer and two liquid layers are formed. Solids are pushed out by the screw conveyor, and liquids are removed from their respective nozzles. Therefore, the application of three-phase decanter centrifuge can not only separate the solid in the material, but also separate the two-phase liquid with different specific gravity in the material, that is, Solid-liquid-liquid separation can be achieved.

Specification

Model	RSSX-350	RSSX-450	RSSX-520
Type	Continues Oil / Water / Solids Separation
Bowl Dia	350mm	450mm	520mm
Bowl Length	1540mm	1800mm	2132mm
Capacity	5 m3/h	10 m3/h	15m3/h
Max Speed	4000 RPM	3600 RPM	3000 RPM
Max G Force	3136 G	3260 G	2620 G
Diff. Speed	2-25 RPM	5-25 RPM	5-25 RPM
Main Drive	22 KW	37 KW	55KW
Back Drive	5.5 KW	15 KW	15KW
Lubrication	Grease/Oil	Oil Pump
Oil Pump Size	N/A or 0.37KW	0.37 KW	0.37 KW
Feed Material	Solids Less 30% and Particle Size less than 2mm

BOWL ASSEMBLY FEATURES

* Bowl Material: Duplex Stainless Steel SS2205
* Solids Discharge port: Tungsten Carbide insert
* Bearing: SKF or Japan NSK Brand
* Gearbox type: planetary wheel type
* Screw Conveyor Material: Duplex Stainless Steel SS2205
* Material Distribution Nozzle: : Tungsten Carbide insert
* Screw Conveyor Wear Protection: Tungsten Carbide Tiles
* Differential Speed: Adjustable according to conditions
* Bearing: SKF or Japan NSK Brand

3 PHASE DECANTER ADJUSTABLE SEPARATION

Flexible for different Liquid Phase Proportion
An adjustable impeller discharges the "heavy" liquid phase. Furthermore, the operator can use the adjustable impeller to adjust the pond depth of the heavy liquid without difficulty during ongoing operation. According to the Proportion of two different phase, An adjustment mechanism causes the position of the impeller to change, thus changing the separation line of the liquids.
The process engineering results can thus be influenced so as to achieve the required separation result.
