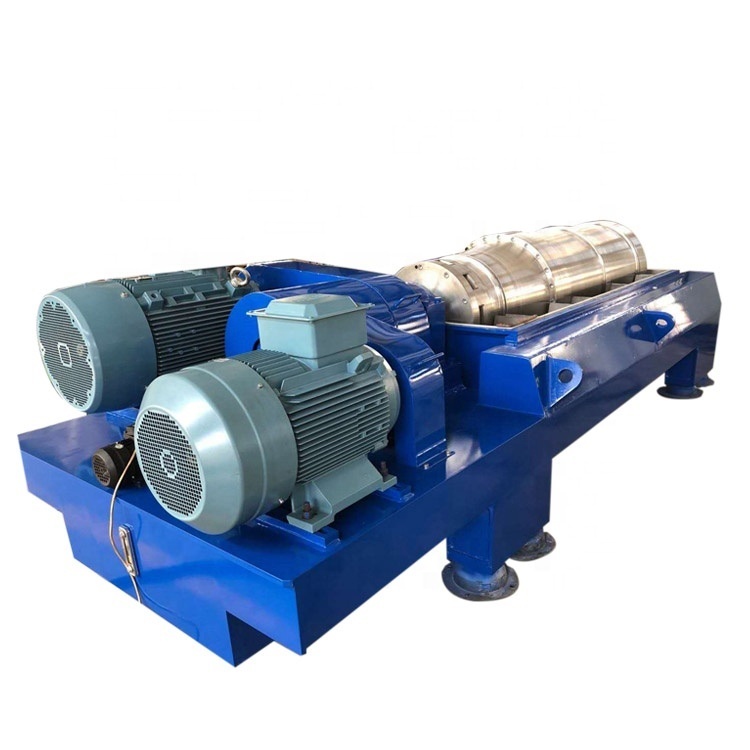

Decanter Centrifuge for Sludge and Wastewater Treatment
LW series decanter wastewater treatment centrifuges can be used in Municipal wastewater ;Cleaning of wash water; urban domestic wastewater treatment; chemical sewage water purification,;sewage slurry reduction and other related sewage treatment industries.
The main purpose of the horizontal decanter spiral centrifuge is to remove the suspended solids in the wastewater and mud as much as possible, and separate the solid and liquid items. Thus realizing the recycling of water resources.
In view of the world's higher and higher requirements for environmental protection. Modern waste treatment processes and discharge standards are becoming more and more stringent, and the subsequent treatment of dewatered cakes is becoming more difficult. Our horizontal spiral decanter centrifuges can meet various needs for sewage sludge treatment. And we can formulate wastewater sludge treatment plan according to your requirements, and can undertake turnkey projects.
Reyes Decanter Centrifuge is designed for the drilling mud solids control and oilfield waste management.
Model |
Diameter (mm) |
Length (mm) |
Max speed |
L/D ratio |
G-force |
Capacity (m3/h) |
Main motor (Kw) |
Weight (kg) |
Dimension (mm) |
LW250 *1000 |
250 |
1000 |
5000 |
4 |
2722 |
0.5-5 |
7.5 |
1600 |
2120*1250*680 |
LW300 *1200 |
300 |
1200 |
4000 |
4 |
2784 |
2-6 |
11 |
2700 |
2450*1300*900 |
LW355 *1460 |
355 |
1460 |
3600 |
4 |
2576 |
2-10 |
15 |
2850 |
2750*1350*830 |
LW400 *1200 |
400 |
1200 |
3200 |
3 |
2294 |
3-12 |
18.5 |
3100 |
2730*1600*1080 |
LW400 *1600 |
400 |
1600 |
3000 |
4 |
2016 |
3-15 |
22 |
3260 |
3130*1600*1080 |
LW450 *1800 |
450 |
1800 |
2800 |
4 |
1976 |
4-25 |
37 |
3250 |
3320*1700*1130 |
LW500 *2000 |
500 |
2000 |
2500 |
4 |
1750 |
5-35 |
45 |
4000 |
3520*1800*1170 |
LW530 *2120 |
530 |
2120 |
2400 |
4 |
1709 |
5-40 |
55 |
4800 |
4150*1350*1600 |
LW550 *2200 |
550 |
2200 |
2800 |
4 |
2415 |
6-40 |
55 |
5700 |
4570*1380*1600 |
LW650 *1950 |
650 |
1950 |
2200 |
3 |
1761 |
6-45 |
75 |
5000 |
4840*1510*1720 |
LW650 *2600 |
650 |
2600 |
2000 |
4 |
1456 |
6-65 |
90 |
6000 |
5490-1510*1720 |
LW720 *2160 |
720 |
2160 |
2000 |
3 |
1612 |
7-80 |
120 |
6000 |
5200*1600*1800 |
LW720 *2880 |
720 |
2880 |
2000 |
4 |
1306 |
7-90 |
120 |
8000 |
3100*1600*1800 |
LW800 *2400 |
800 |
2400 |
1800 |
3 |
1451 |
20-120 |
150 |
12000 |
5820*2000*1300 |
LW800 *3200 |
800 |
3200 |
1800 |
4 |
1451 |
20-120 |
150 |
13000 |
7100*2000*1300 |

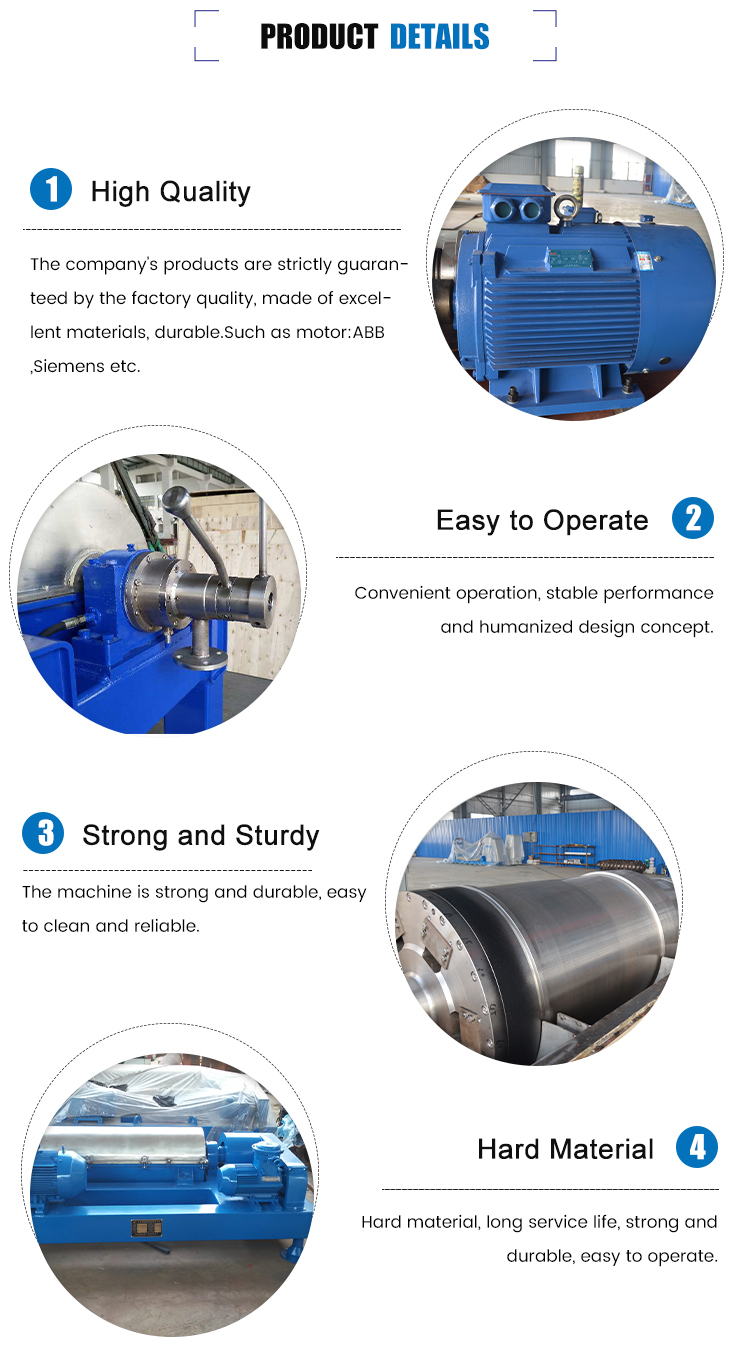

Decanter centrifuge details
