Product Details

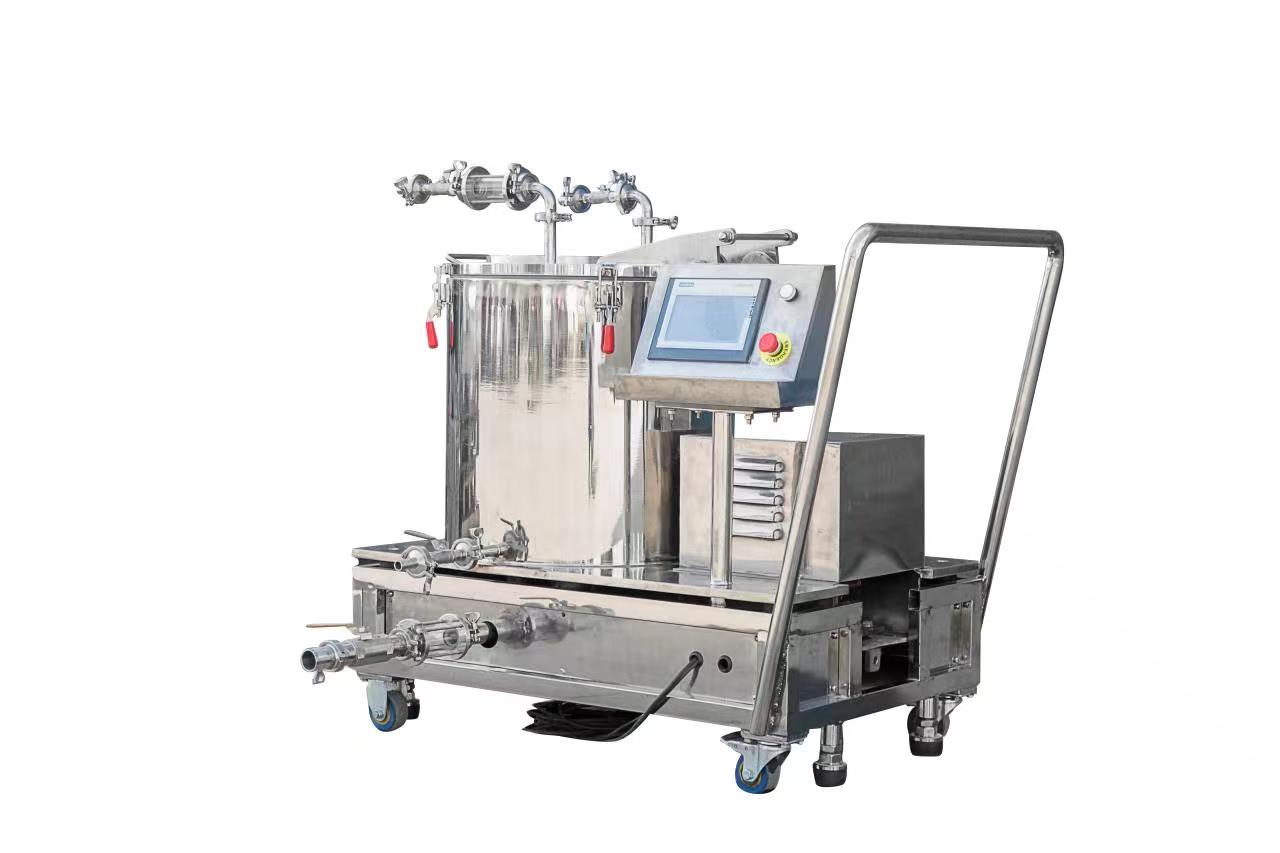

EEC series Cbd hemp oil extraction machine

EEC series centrifuge is specially designed for plant extraction, and have the functions of airtight, explosion-proof, clean and mobile. EEC series centrifuge adopts flat-bottomed drum structure, which has larger volume, higher cleanliness, and non-polluting structure design. With simple operation, clean appearance, stable and excellent performance, it is liked by consumers. Compared with the traditional discharge centrifuge, The machine adopts a closed structure, and the seal is sealed with ptfe; the exposion-proof motor, frequency converter, PLC, touch screen and other devices can be used to achieve the sealed explosion-proof requirements.

The ethanol extraction equipment, known as industrial centrifuge as well, is a general-purpose mechanical product for gap
operation. It is suitable for separating suspensions containing solid phase particles whose diameters are equal or greater than 0.01 mm, such as separation of granular, crystalline or fibrous materials, and also for textile dehydration.

Working principles
The operator fills the filter bag with ground plant material and places it in the machine. Then, ethanol is added until the plant material is submerged, and the program is set to bidirectional (positive and reverse alternating) rotation to fully extract the active ingredients in the plant. The bottom valve is opened to release the extract, and then the plant material is subjected to high-speed rotary exhaustion of fluid to completely recover the extract.

Specification

Model	Volume (L)	Revolving speed(r/min)	Motor Power (KW)	Size (mm)	Weight (KG)
EEC-15	15	2000	1.1	950500480	210
EEC-30	30	1500	1.5	950500580	220
EEC-50	60	1250	3	1250700860	470
EEC-100	100	1100	3	1500900950	970
EEC-150	150	1000	4	15009001050	1000
EEC-200	200	900	5.5	15009001150	1030

EEC series centrifuge Feature

1. Low temperature acceptable -70 ℃ to 70 ℃. 2. The structure of the large sight glass can clearly view the internal situation of the equipment. 3. Fully automatic extraction process, the program can set the forward and reverse rotation speed, time and cycle times, and can switch to manual control. 4.PLC display 5. The zipper filter bag can be quickly loaded and unloaded, and can be completed by a single person. 6. Other optional configuration: oxygen content detection protection system, cart structure, Chiller, Storage tank, Diaphragm pump,Vacuum filter,Vacuum pum

★Unique design. The barrel can be separated. (Only our factory has this function)Other suppliers don't separate it. Reason: For counterweight and cost-saving, the material of the base is generally iron. The barrel and the base are connected by welding without an air interlayer. Under the working condition of -40 degrees to -80 degrees, the equipment is easily broken and has great safety risks, but our base and barrel can be separated to solve the problem these questions
