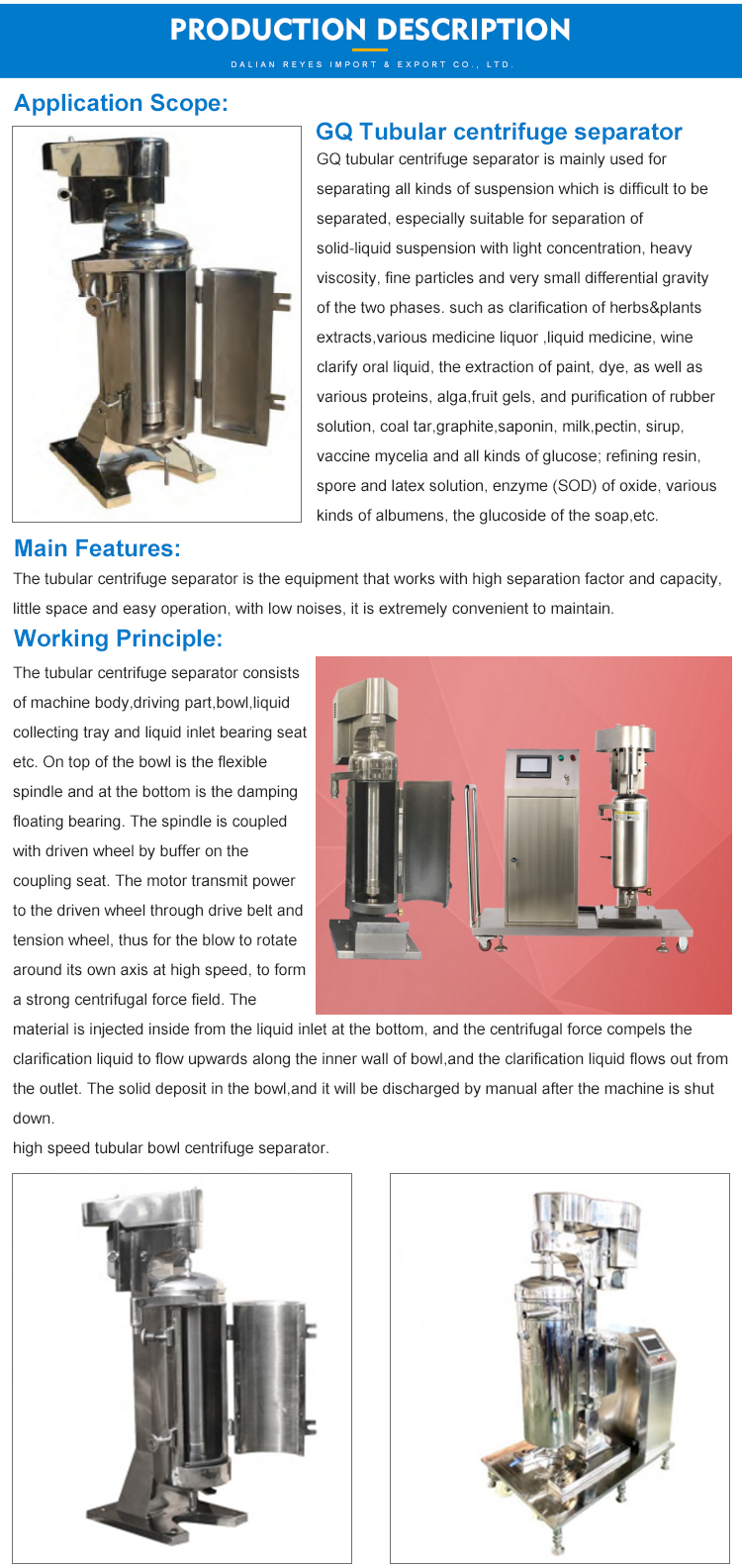

GQ Tubular centrifuge separator is mainly used for separating all kinds of suspension which is difficult to be separated,especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. such as clarification of herbs&plants extracts,various medicine liquor ,liquid medicine, wine clarify oral liquid, the extraction of paint, dye, as well as various proteins, alga,fruit gels, and purification of rubber solution, coal tar,graphite,saponin, milk,pectin, sirup, vaccine mycelia and all kinds of glucose; refining resin, spore and latex solution, enzyme (SOD) of oxide, various kinds of albumens, the glucoside of the soap,etc.
Tubular centrifuge main Features:
The tubular centrifuge separator is the equipment that works with high separation factor and capacity, little space and easy operation, with low noises, it is extremely convenient to maintain.
Tubular centrifuge applications
| Items | GQ75 | GQ105 | GQ125 | GQ150 |
|---|---|---|---|---|
| Bowl Diameter(mm) | 75 | 105 | 125 | 150 |
| The Effective Height（mm） | 450 | 730 | 730 | 730 |
| Bowl Volume(L) | 2.2 | 6 | 8 | 10 |
| Speed of Rotation(r/min ) | 19200 | 16300 | 15000 | 14000 |
| Separation Factor( ω2.r/g ) | 15600 | 15250 | 15750 | 14300 |
| Working pressure(MPa ) | ≥0.05 | |||
| Through Output Capacity for Clean Water(L/h) | 600 | 1200 | 2000 | 3000 |
| Motor Power(kW ) | 1.5 | 3.0 | 4.0 | 4.0 |
| Dimensions(L×W×H)(mm) | 760x450x1120 | 840×500×1600 | 900×550×1600 | 900×550×1600 |
| Weight（Kg） | 200 | 570 | 610 | 665 |
| The above specification and parameters for reference only. | ||||

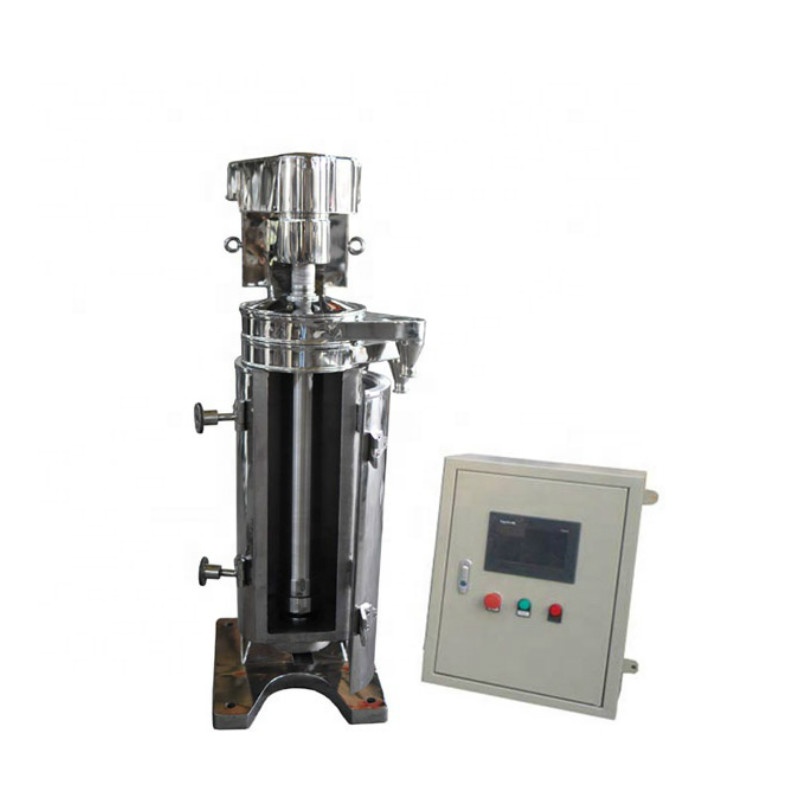

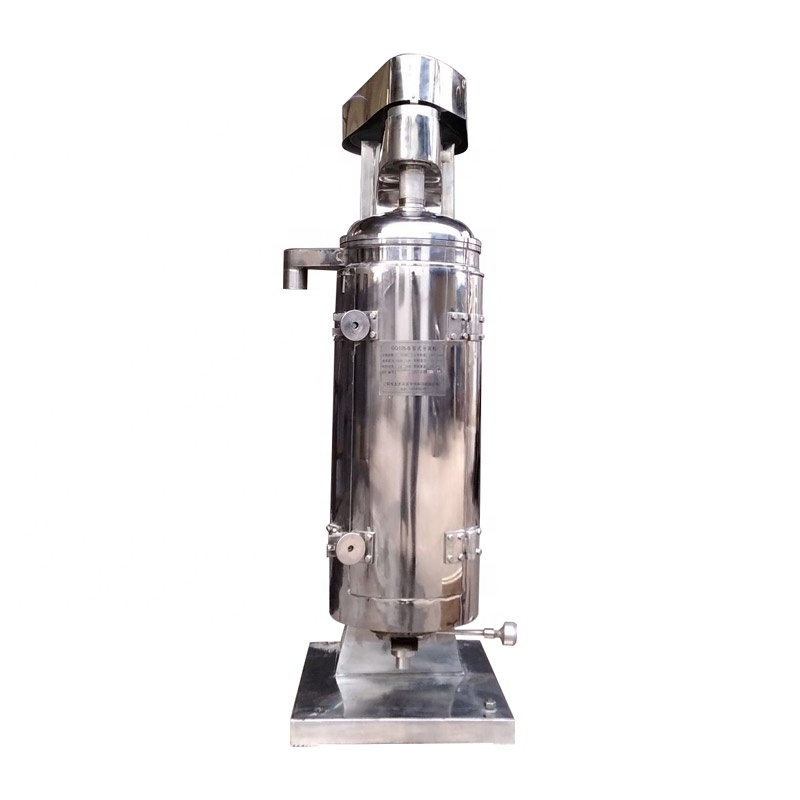

GQ Tubular centrifuge machine photos
