Isolation of Escherichia coli from Tubular Centrifuge

Product Details

GQ Tubular centrifuge separator is mainly used for separating all kinds of suspension which is difficult to be separated,especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. such as clarification of herbs&plants extracts,various medicine liquor ,liquid medicine, wine clarify oral liquid, the extraction of paint, dye, as well as various proteins, alga,fruit gels, and purification of rubber solution, coal tar,graphite,saponin, milk,pectin, sirup, vaccine mycelia and all kinds of glucose; refining resin, spore and latex solution, enzyme (SOD) of oxide, various kinds of albumens, the glucoside of the soap,etc.



Tubular centrifuge main Features:

The tubular centrifuge separator is the equipment that works with high separation factor and capacity, little space and easy operation, with low noises, it is extremely convenient to maintain.



Tubular centrifuge applications

  • Pharma
  • Chemical
  • Food Industries
  • Edible Oil Industries
  • Printing Ink
  • Bacteria Cell Separation
  • Gum Clarification
  • Biodiesel Plants
  • Beverage Industry
  • Biomass Separation

Tubular centrifuge technical parameter

ItemsGQ75GQ105GQ125GQ150
Bowl Diameter(mm) 75 105 125 150
The Effective Height(mm) 450 730 730 730
Bowl Volume(L) 2.2 6 8 10
Speed of Rotation(r/min ) 19200 16300 15000 14000
Separation Factor( ω2.r/g ) 15600 15250 15750 14300
Working pressure(MPa )  ≥0.05
Through Output Capacity for Clean Water(L/h) 600 1200 2000 3000
Motor Power(kW ) 1.5 3.0 4.0 4.0
Dimensions(L×W×H)(mm) 760x450x1120 840×500×1600 900×550×1600 900×550×1600
Weight(Kg) 200 570 610 665
The above specification and parameters for reference only.



GQ tubular centrifuge   separator

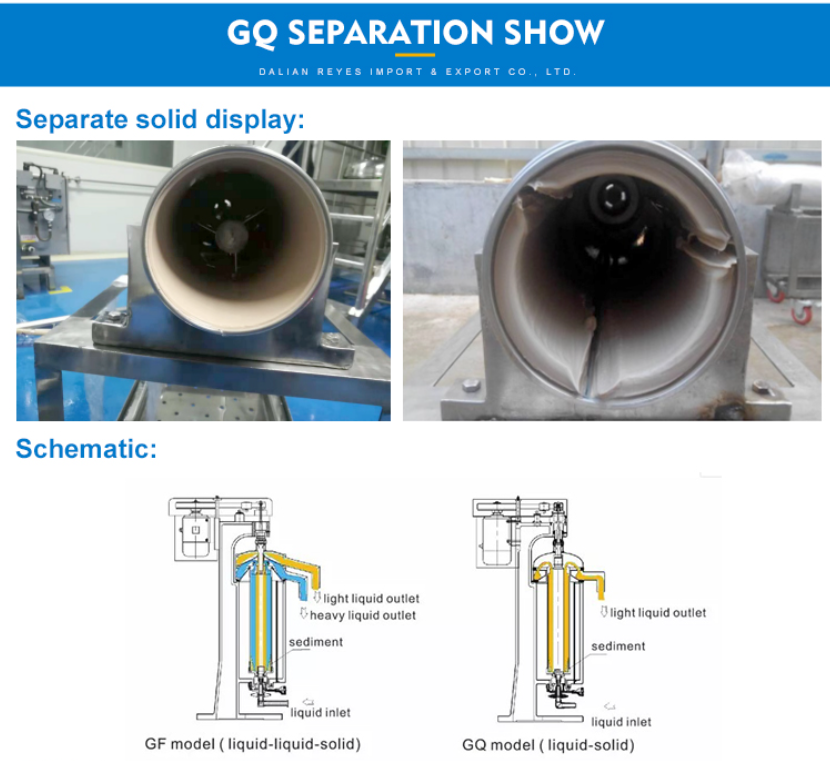

tubular centrifuge separation details

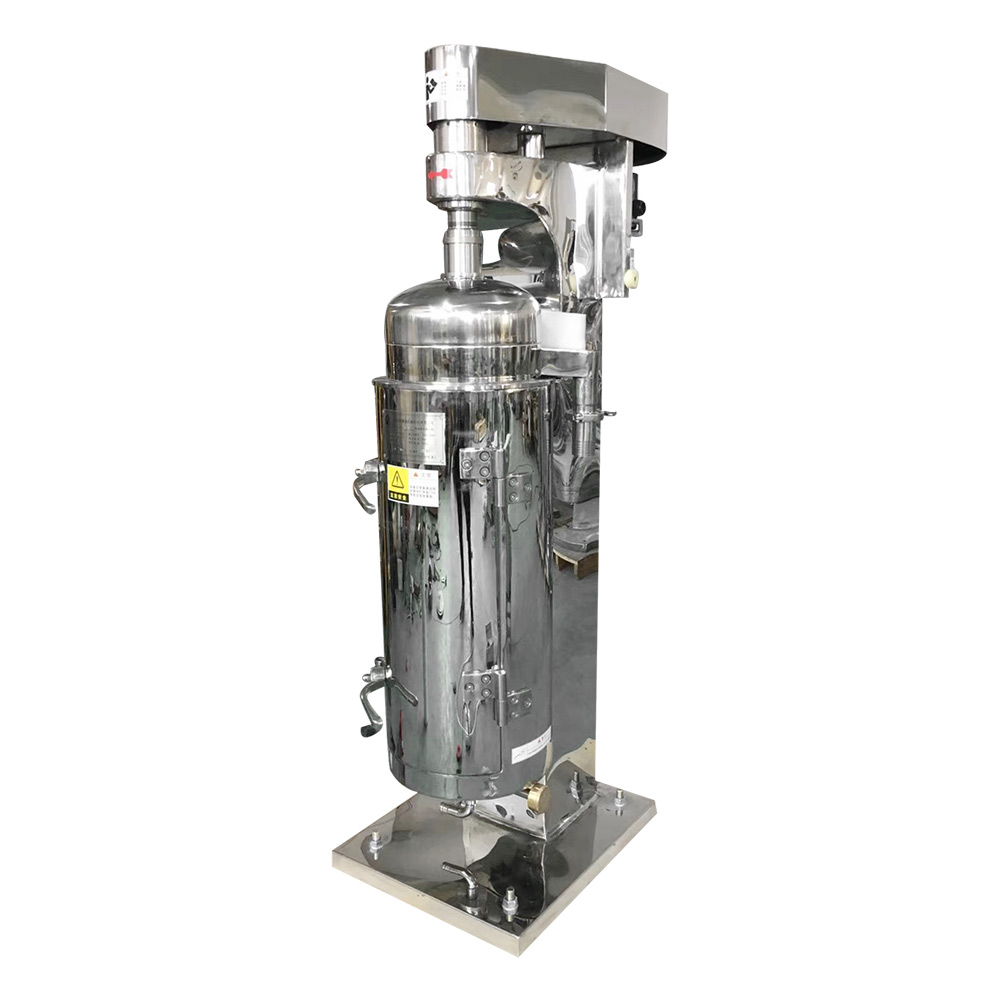

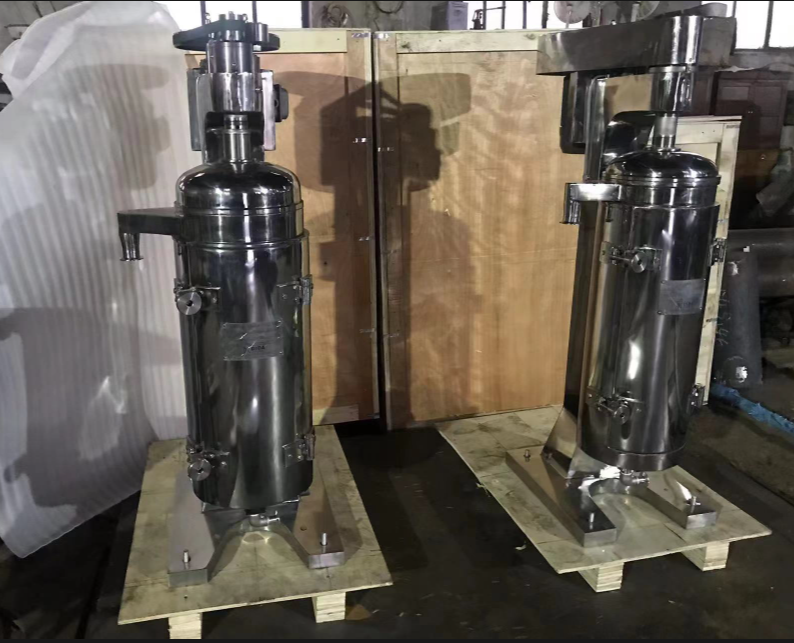

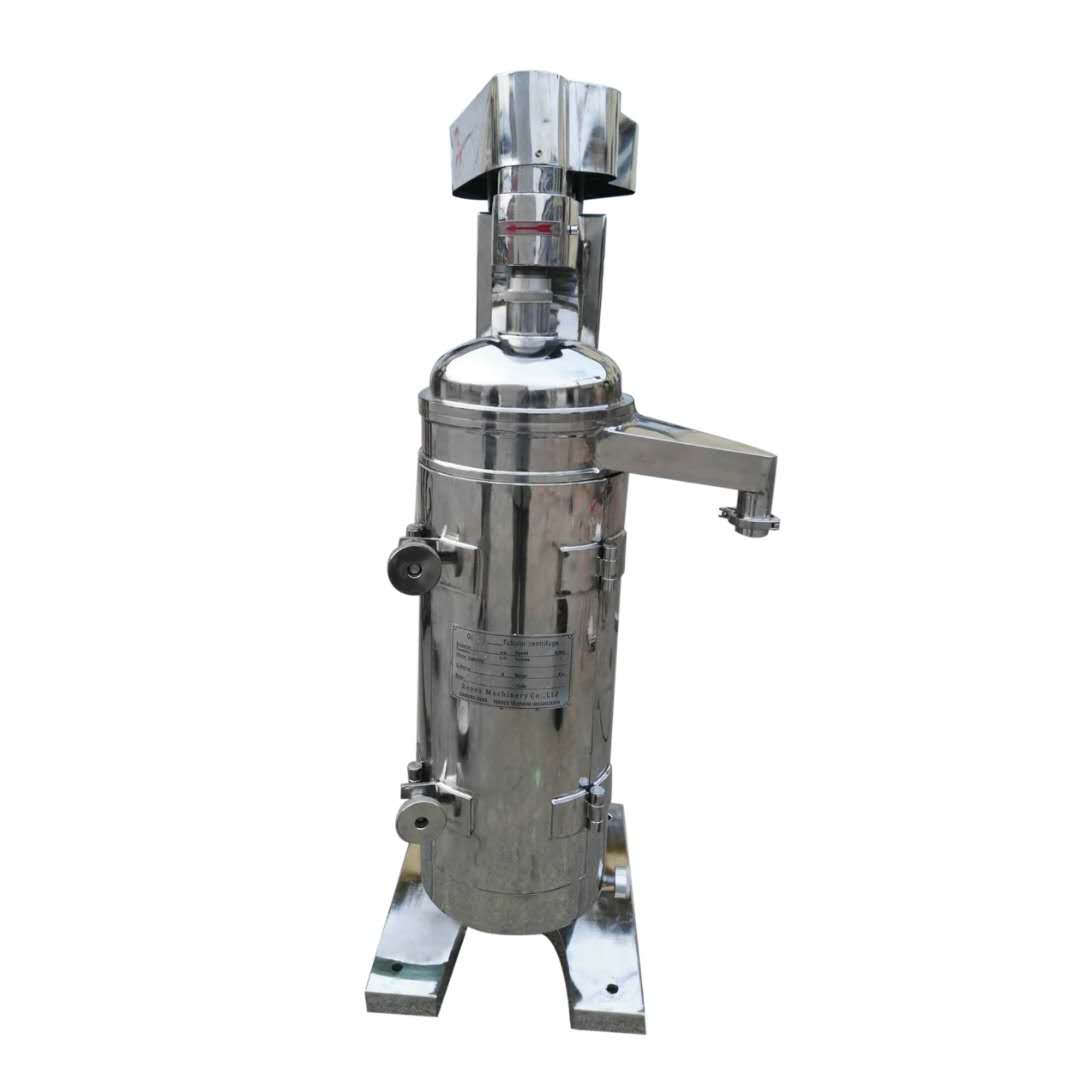

GQ Tubular centrifuge machine photos

GQ tubular centrifuge
