LWL High Efficient Pusher Sugar Separator Centrifuge Horizontal Spiral Discharge Filtering Centrifuge For Salt Centrifuge

Product Details

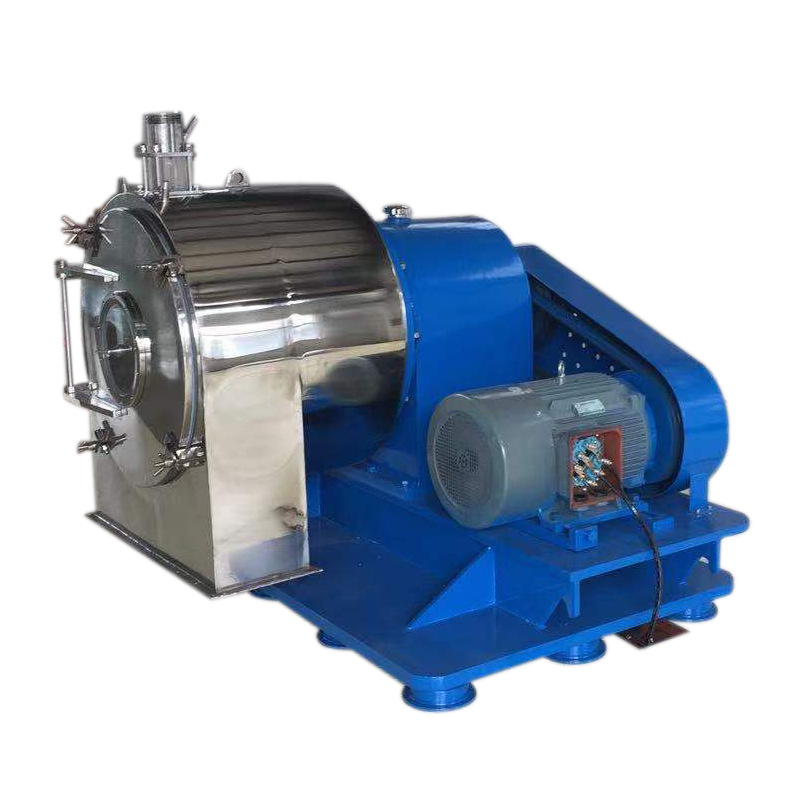

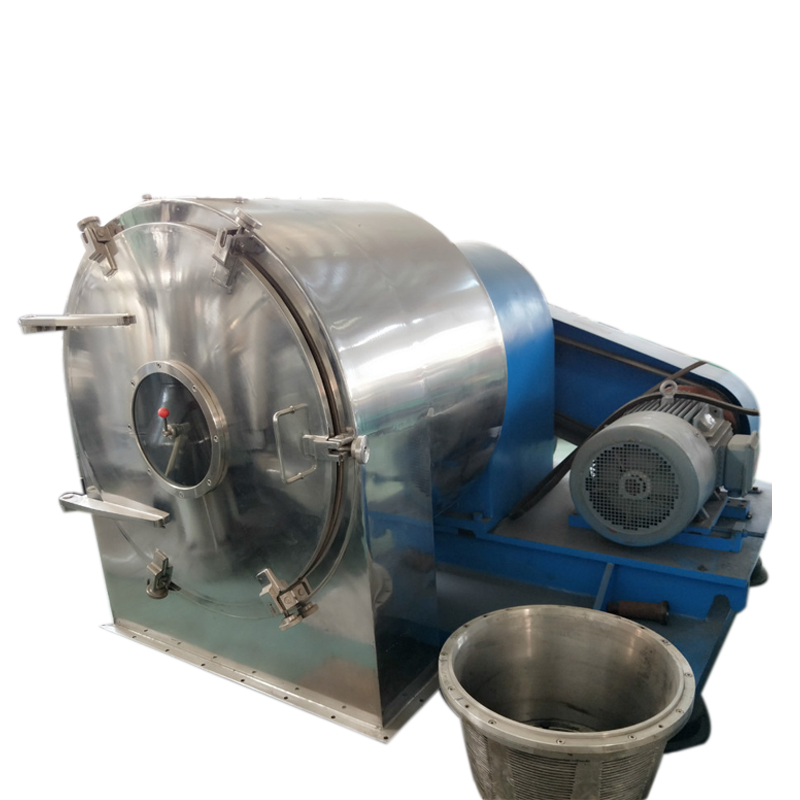

LWL   Horizontal Spiral Discharging Filter Centrifuge

LWL   Horizontal Spiral Discharging Filter Centrifuge

How to Separate Salt

Usually, we use LWL Horizontal screen worm centrifuge to separate salt.

Solid content

Solid content processing capacity; The LWL series Horizontal screen worm centrifuge can be treated with a solid content of 20% -80%

Capacity

The higher solid content, the smaller difference between HR and LWL Salt Separation. If the solid content is not too high, and the demand for production is limited, and the budget is limited, choosing HR Pusher centrifuge single machine production is higher because the inflow flow can be faster.

Moisture

Around 5%-7%.

Particle

We help customers choose screen mesh based on the required particle size.

The particle of LWL series Horizontal screen worm centrifuge is less than 200 mesh.

LWL   Horizontal Spiral Discharging Filter Centrifuge


Technical parameter

LWL   Horizontal Spiral Discharging Filter Centrifuge

Model  Bowl diameter
(mm)
Bowl speed
(r/min)
G-force
(R/G)
Capacity
(M³/H)
Mainmotor
(Kw)
Weight
(KGS)
Overall dimensions
(L*W*H)
LWL200 200 4000 1790 0.5-1.5 3 550 1120*1020*800
LWL 250 250 3500 1714 1.0-3.5 4 600 1120*1050*850
LWL 320 320 2630 1240 0.5-2.5 7.5 700 1350*1050*1000
LWL 350 350 3000 1770 1-3 11 1000 1400*1250*1150
LWL 450 450 2500 1580 2-5 22 1500 1600*1400*1300
LWL 530 530 2000 1190 3-10 30 2000 1700*1450*1400
LWL 630 630 1800 1140 5-15 37 2500 2000*1440*1740
LWL 800 800 1500 1006 8-30 55 3700 2750*1750*2000
LWL 1000 1000 900 450 10-50 75 6200 3200*2155*2280

Material selection:
The material of the part in contact between the centrifuge and the material can be selected from stainless steel (304, 316L, 2205, etc.), Hastelloy, titanium, and other corrosion-resistant materials according to customer requirements.

Configuration selection:
Explosion-proof configuration, gas-liquid separation device at the discharge port, washing device, vibration, and main bearing temperature monitoring protection, etc.
