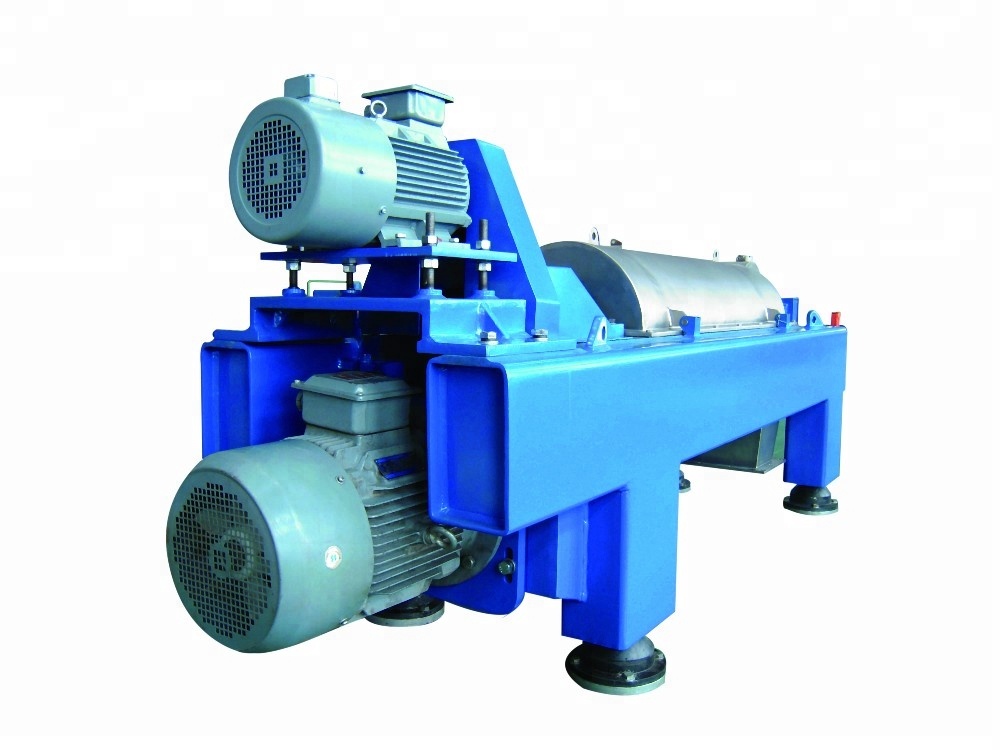

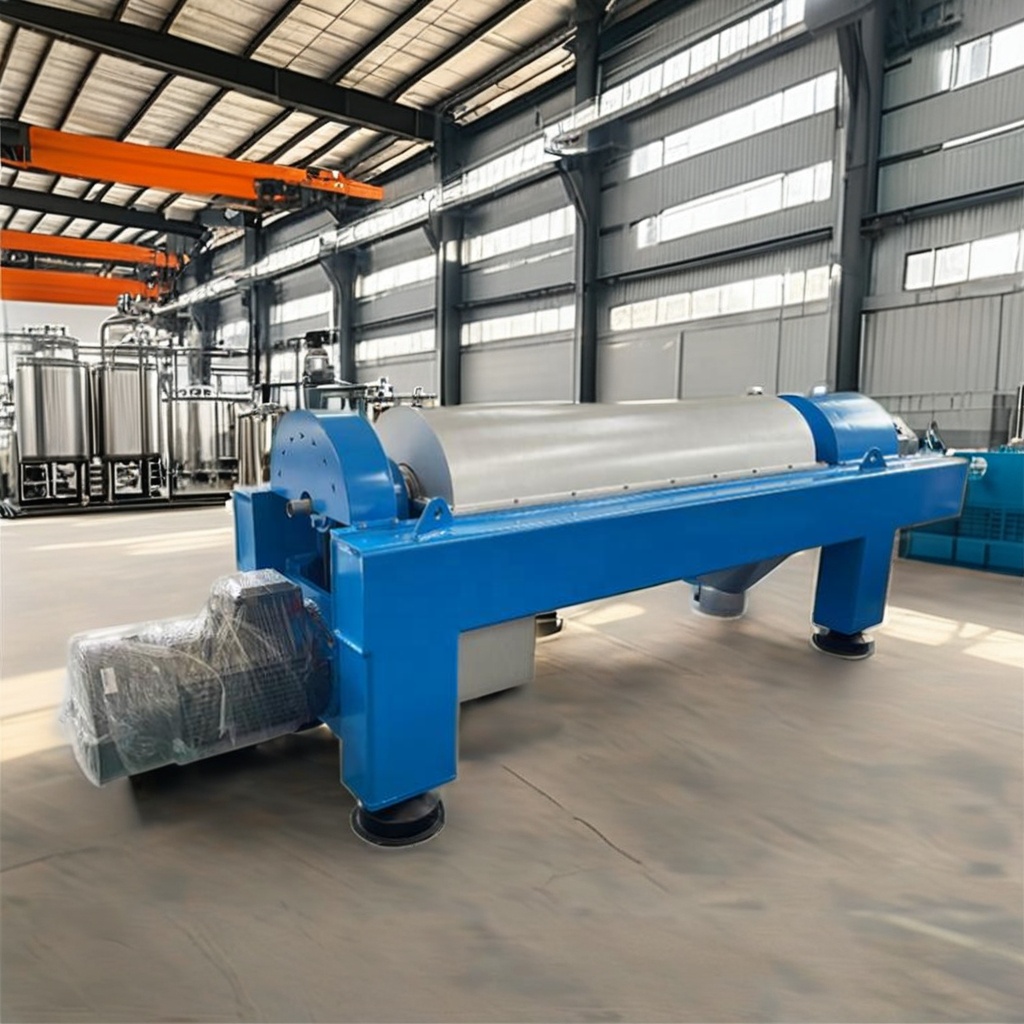

LWS maquina  3 phase decanter centrifuge

Description

3 phase liquid-liquid-solid Decanter centrifuges, also called tricanter , Taking advantage of the principle that the heavy liquid,light liquid and solid phase, with different density and mutually insoluble in the mixed liquid, gain different sedimentation speed in the centrifugal force field or gravity force field, separating stratification or causing the solid particles in the liquid to deposit can be achieved.It is the popular machine throughout the world and widely used in the crude oil separation.Specially used for remove sludge and water from crude oil.

Introduction

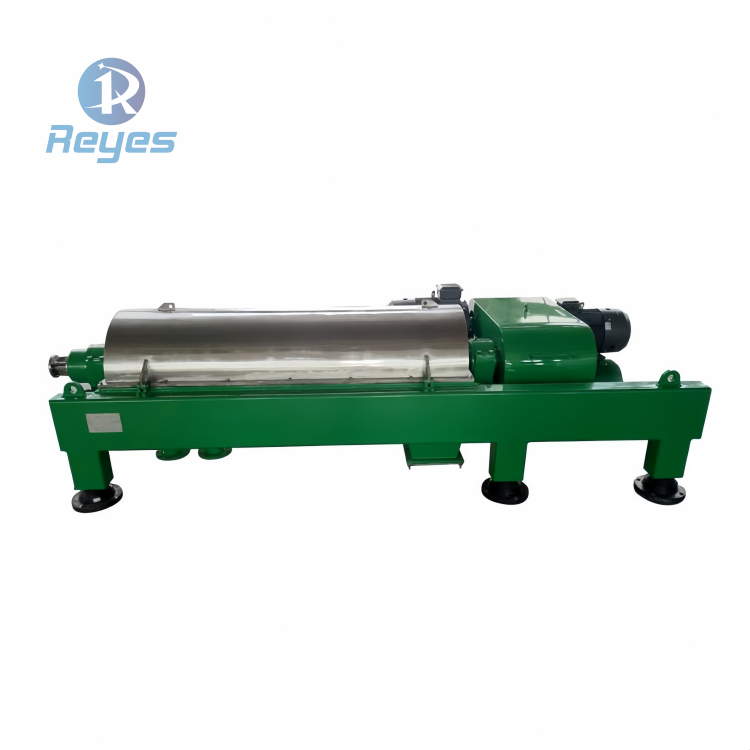

A decanter centrifuge is a high-speed horizontal spiral separation machine widely used for continuous solid-liquid separation, sludge dewatering, and oil-water-solid 3-phase separation in heavy industrial applications. As a leading ISO & CE certified manufacturer, REYES Machinery (China) specializes in the design, production and customization of decanter centrifuges for global clients in wastewater treatment, oilfield, chemical, mining, food and environmental protection industries. Our decanter centrifuges deliver strong centrifugal force, stable 24-hour operation, low sludge moisture content and reliable performance, helping enterprises improve separation efficiency, reduce disposal costs and meet strict environmental standards.

Working Principle

The REYES decanter centrifuge operates using high-speed rotation to generate powerful centrifugal force. When material enters the rotating drum, solid particles with higher density are quickly thrown to the inner wall of the drum. The built-in screw conveyor, which runs at a slight differential speed, continuously pushes accumulated solids toward the solid discharge port. At the same time, the lighter liquid phase overflows from the other end. For 3-phase separation, the machine simultaneously separates oil, water and solid in one step. This fully automatic structure realizes uninterrupted feeding and discharging, making it ideal for large-volume and long-running industrial projects.

High Configuration LWS Decanter Centrifuge Key Features

• 3-phase AC motor for controlled torque starting via frequency converter, Dual Motors drive and Dual Variable Frequency Converter drive to realize the function of soft starting and slowstop;
• Bowl speed is adjustable via VFD to obtain the required G-force for optimized separation;
• Conveying speed is adjustable for optimized balance between liquid;
• Low personnel costs due to continuous and automatic operation;
• Highest g-force for higher solids output;
• Automatic adjustment of differential speed via VFD;
• Belts for both primary motor and secondary motor;
• All parts coming into contact with the product are made of stainless steel;
• Main machine parts such as the bowl and scroll conveyor are made of corrosion resistant ,Cemented carbide and high quality carbon steel or stainless steel, offering high maximum bowl speed and high centrifugal force;
• Wear-proof Ceramic, Tungsten Carbide tiles are sintered on the scroll conveyor;
• Centripetal pump ,Improve separation efficiency. More convenient on-site adjustment;
• Multiple safety protection: The overall electric protection (overload, default phase, over-torque of centrifuge protection, etc.); bowl speed and differential speed detection, over-vibration protection, motors overload and over heat protection, bearing temperature monitoring, conveyor torque protection;
• Advanced special structure, especially the design of BD board on the scroll conveyor, which makes the centrifuge have better performance, greater treating capacity and more efficient separating performance than the usual centrifuge. It’s also energy and additive saving, stably and reliably operating, and easy operating. The centrifuge is certified with ISO9001 qualitysystem;
• Guiding to select the suitable Decanter Centrifuge Equipment with customers' specific requirements;
• Our professional technicians would guide and train the customers to install, debug and maintain the Decanter Centrifugemachine;
• We accept customers' OEM order( According to customers' treating materials and specific requirement, we would re-design the structure to optimize the Decanter Centrifuge maximizingly);
• Some Models are specially designed with long range sedimentingarea.

Technical Parameter
