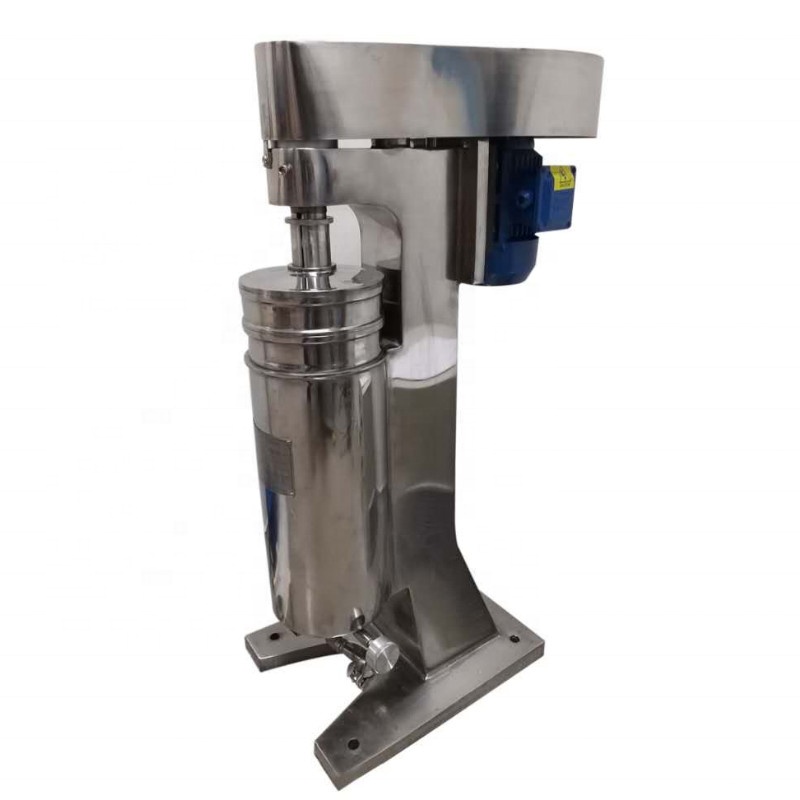

Tubular centrifuge algae centrifugal filter machine
Tubular centrifuge main Features:
The tubular centrifuge separator is the equipment that works with high separation factor and capacity, little space and easy operation, with low noises, it is extremely convenient to maintain.
Tubular centrifuge applications
| Items | GQ75 | GQ105 | GQ125 | GQ150 |
|---|---|---|---|---|
| Bowl Diameter(mm) | 75 | 105 | 125 | 150 |
| The Effective Height（mm） | 450 | 730 | 730 | 730 |
| Bowl Volume(L) | 2.2 | 6 | 8 | 10 |
| Speed of Rotation(r/min ) | 19200 | 16300 | 15000 | 14000 |
| Separation Factor( ω2.r/g ) | 15600 | 15250 | 15750 | 14300 |
| Working pressure(MPa ) | ≥0.05 | |||
| Through Output Capacity for Clean Water(L/h) | 600 | 1200 | 2000 | 3000 |
| Motor Power(kW ) | 1.5 | 3.0 | 4.0 | 4.0 |
| Dimensions(L×W×H)(mm) | 760x450x1120 | 840×500×1600 | 900×550×1600 | 900×550×1600 |
| Weight（Kg） | 200 | 570 | 610 | 665 |
| The above specification and parameters for reference only. | ||||
