Product Details

Main Application of Decanter Equipment in Chemical and Mining Industry:

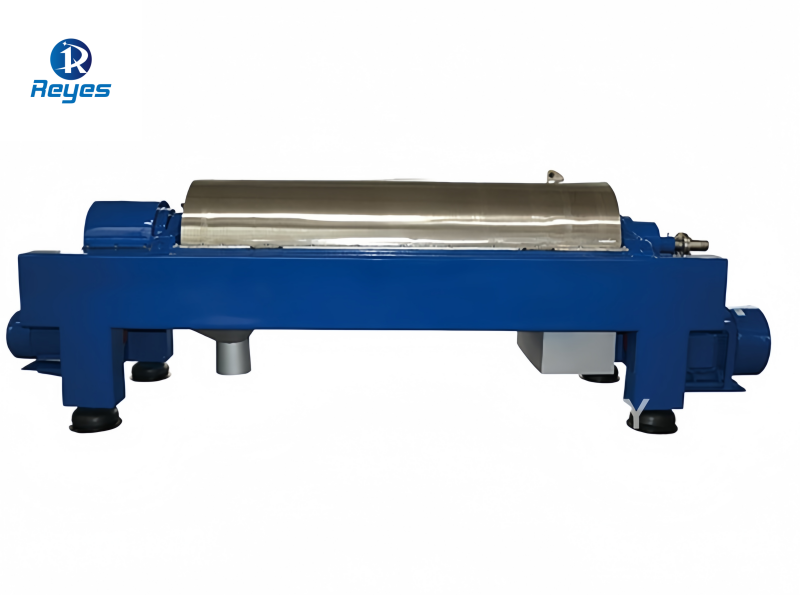

REYES Machinery decanter centrifuge for continuous solid-liquid separation and sludge dewatering

Reyes industrial centrifuge has a wide range of application scenarios in the chemical and mining industry. Mechanical separation technology plays a very important role in environmental protection treatment of waste water, waste oil and harmful substances in chemical industry. Reyes industrial centrifuge can effectively separate liquid mixture, realize mixture classification, and simultaneously dehydrate solid and extract components. Therefore, it is widely used in various chemical production industries such as grey water treatment, coal tar recovery treatment and sulfur foam treatment.

Reyes decanters are virtuosos in the mining industry - above all when it comes to processing ore and minerals. Ore processing is highly important, particularly in the production of precious metals and non-precious metals. This process uses decanters in various mining applications: gold and silver, lead and zinc, nickel and copper, platinum, lanthanoids.

There are numerous possible applications and processing methods for minerals: from the ceramics industry through to cosmetics for the paint industry - from straightforward mechanical processing through to use in chemical processes - everything is possible.

This is why use of a decanter is particularly suitable. The decanter plays a central role in processing minerals for the following applications: kaolin, calcium carbonate, titanium dioxide, barite, zinc sulphate, aluminium hydroxide.

Our separation technology solutions can be used in almost all extractive processes of minerals, raw materials and ores. For more than 30years, we have supported our customers to increase their profits and optimise their procedures with clever solutions. The core of all mining processes is the Shenzhou decanter developed for them. It is the optimum solution for processing minerals and ore, and has innumerable possible applications. Our engineers have continuously developed the centrifuge and adapted it perfectly to meet the requirements of mining - for example through magnificent wear protection.

Your advantages in the processing of ore and minerals

Lower operating costs

* Straightforward processing of large product quantities increases the effectiveness of production
* Resistance against wear and corrosion reduces maintenance costs
* Long service life and service intervals, combined with very short repair times, reduce the costs of upkeep
* High quality and purity of the end product lead to a rapid return on investment
* Continuous and fully automatic operation reduces personnel costs

A sustainable solution

* Energy saving - also in the subsequent processing of the solids
* A completely closed machine design prevents emissions and protects the environment
* Highest quality and safety - Made in China

Competent support and service
Every process is different. There are many different factors which influence the processing of minerals and ore, and all have a decisive influence on success. We support our customers throughout the process sequence, and offer you special technical knowledge in the mining area. Our worldwide network guarantees you the best service and individual support:

* Laboratory samples - discover new potential
* Process analysis - optimise your performance with our separation technology solutions
* Individual project planning - we adapt the machines according to your requirements and conditions
* Specialists - benefit from our specialist knowledge and decades of experience

Searched for and now found: New centrifuges for a processing plant.

Due to the high sulphur content, it is often difficult for mining and processing plants to extract waste water.

With the help of modern processing technology, the mine was able to solve the problem. In this article you will learn how the mine solved the problem and the results.

Working Principle

REYES MACHINERY decanter centrifuges operate on the principle of centrifugal sedimentation. The horizontal bowl and screw conveyor rotate at high speeds (with a slight differential speed). Feed slurry enters the rotating bowl, where centrifugal force pushes heavier solids to the bowl wall. The screw conveyor transports settled solids to the conical discharge end, while clarified liquid flows out from the liquid outlet.

This continuous process ensures stable separation, dry solid discharge, and clear liquid output, ideal for large-volume industrial processing.

Key Features & Advantages

Premium Stainless Steel Construction

All product-contact parts use 304/316L stainless steel; critical components adopt wear-resistant alloys (tungsten carbide) for long service life. REYES MACHINERY strictly controls material quality to ensure corrosion resistance and durabilityReyes Machinery.

High Separation Efficiency

Adjustable bowl speed & differential speed via VFD control
High G-force design (up to 4,000 G) for maximum solids dryness & liquid clarity
2-phase (solid-liquid) & 3-phase (liquid-liquid-solid) models available

Low Operation & Maintenance Costs

Continuous 24-hour operation with minimal supervision
Compact structure, small footprint, easy installation
Modular design for quick maintenance & parts replacement

Customized Solutions

REYES MACHINERY offers custom decanter centrifuge solutions tailored to your feed characteristics, capacity, and separation requirementsReyes Machinery.

Technical Specifications (LW Series)

Model	Diameter (mm)	Length (mm)	Max speed	L/D ratio	G- force	Capacity (m3/h)	Main motor power (Kw)	Weight (kg)	Dimension (mm)
LW250*1000	250	1000	5000	4	2722	0.5-5	7.5	1600	21201250680
LW300*1200	300	1200	4000	4	2784	2-6	11	2700	24501300900
LW355*1460	355	1460	3600	4	2576	2-10	15	2850	27501350830
LW400*1200	400	1200	3200	3	2294	3-12	18.5	3100	273016001080
LW400*1600	400	1600	3000	4	2016	3-15	22	3260	313016001080
LW450*1800	450	1800	2800	4	1976	4-25	37	3250	332017001130
LW500*2000	500	2000	2500	4	1750	5-35	45	4000	352018001170
LW530*2120	530	2120	2400	4	1709	5-40	55	4800	415013501600
LW550*2200	550	2200	2800	4	2415	6-40	55	5700	457013801600
LW650*1950	650	1950	2200	3	1761	6-45	75	5000	484015101720
LW650*2600	650	2600	2000	4	1456	6-65	90	6000	5490-1510*1720
LW720*2160	720	2160	2000	3	1612	7-80	120	6000	520016001800
LW720*2880	720	2880	2000	4	1306	7-90	120	8000	310016001800
LW800*2400	800	2400	1800	3	1451	20-120	150	12000	582020001300
LW800*3200	800	3200	1800	4	1451	20-120	150	13000	710020001300

Why Choose REYES MACHINERY?

30+ Years of Expertise: Specialized in centrifuge R&D, production, and salesReyes Machinery
ISO9001 & CE Certified: Strict quality control for reliable performanceReyes Machinery
Global Support: Professional pre-sales consultation, on-site installation, and after-sales service
Competitive Pricing: Factory direct sales with cost-effective solutions

REYES MACHINERY is not just a decanter centrifuge supplier but your trusted partner in industrial separation.
